BMW RM Module
Used in the (E32) 1986-1994 7-series and (E34) 1987-1996 5-series and possibly other cars
Last updated January 26, 2015

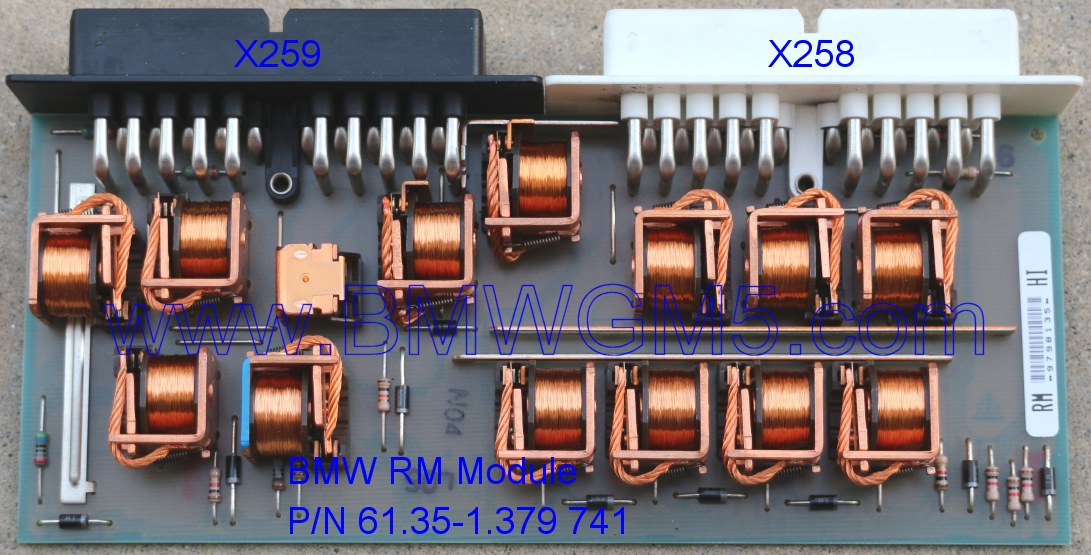

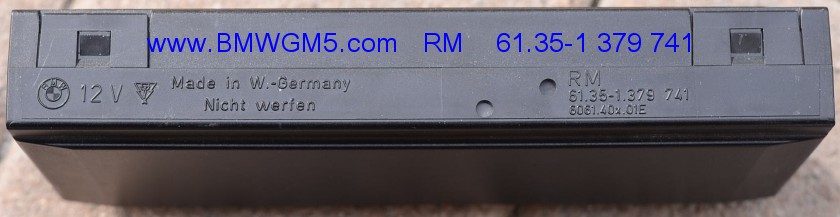

The RM module part number 61.35-1.379 741 was used in the E32 7-series amd E34 5-series and possibly other cars. This module uses 13 of the Tyco V23133-A1001-C133 relays to control various functions in the car such as door lock, power windows, trunk release. If you need to replace one of these relays I have them available for purchase. Click on the part number above. These relays are solder to the board and getting them out without damaging the board can be very difficult without the tools and the skill. If you want you can send it in and get them professionally replaced. Contact me at scottcjohnson@gmail.com
X258
|
|
1
|
Relay coil for X258-11 output |
2
|
Relay coil for X258-12 output |
3
|
Relay coil for X258-13 output |
4
|
Relay coil for X258-14 output |
5
|
Relay coil for X258-15 output |
6
|
Relay coil for X258-16 output |
7
|
Relay coil for X258-17 output |
8
|
To GM ?? 6100.0-05 data line |
9
|
To GM data line |
10
|
to GM for wiper? 6160.0-01 data line |
11
|
Power to right rear window motor |
12
|
Power to passenger window and right rear window motors |
13
|
Power to passenger window motor |
14
|
Power to sunroof motor |
15
|
Power to left rear window motor |
16
|
Power to driver window, left rear window and sunroof motors |
17
|
Power to driver window motor |
18
|
Data Line (window & sunroof position) |
19
|
Data Line |
20
|
Ground |
|
X259
|
|
1
|
Gnd for Door Lock Motors |
2
|
Coil door lock motors - open |
3
|
Coil door lock motors - close |
4
|
Coil door lock motors |
5
|
Power out to GM |
6
|
Gnd for Interior lights |
7
|
Relay coil for X259-6 output |
8
|
Coil for Wiper, fast speed |
9
|
Coil for Wiper, slow speed |
10
|
Ground |
11
|
Power In Fuse 37 |
12
|
Ground |
13
|
Gnd for Door Lock Motors |
14
|
Central locking voltage/ground? |
15
|
Power In Fuse 32 |
16
|
Power out door lock heater |
17
|
Relay coil for X259-16 output |
18
|
Gnd for Wiper motor, slow |
19
|
Gnd for Wiper motor, fast |
20
|
Power In from Wiper relay, K11 |
|
