Various Relays in the BMW E46
The first set of relays is located behind the glovebox. This relay location requires that the glovebox be removed for access.
 |
For cars from 1999 model year without headlight washers
1 - ?? (White-Green) *1 - Not on cars with DME MSS54 |
 |
For cars from 1999 model year with headlight washers 1 - Headlight washer relay (Sky Blue) *1 - Not on cars with DME MSS54 |
The next group of relays is located in the E-Box under the hood near the fire wall on the driver's side.
 |
1 - K6300, Sky Blue Relay (DME) 2 - K6325, Ultra Sky Blue Relay (Reversing Light-Auto only) or K6318, SMG pump-M3 w/SMG only (Salmon ) 3 - K6326, Unloader Relay (Salmon or White-Green) or K6327, Fuel Injector Relay 4 - K11, Front Windshield Wiper Relay (Green-Brown) |
|
P/N
|
Color
|
Price
|
| White-Green (A/C, Fuel Pump, Heater, Fog Lights and Horn) |
$10.68
|
|
| Salmon (Secondary Air Pump & SMG) |
$10.85
|
|
|
61368366???
|
Golden Brown (Heater) |
$5.31
|
|
61361378238
|
Orange (Fog Lights) discontinued use White-Green relay |
----
|
| Sky Blue (DME aka engine computer) |
$10.85
|
|
| Ultra Sky Blue (Reversing Light) |
$10.85
|
|

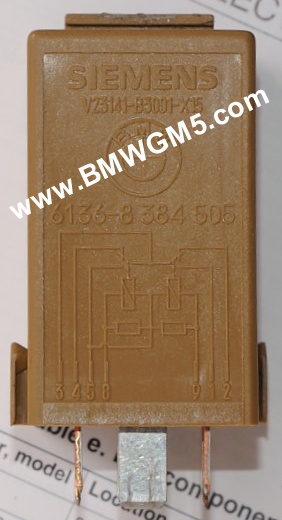

| Green-Brown (front windshield wipers) |
$18.43
|
More information on the E46 wipers.
Prices are from ECS Tuning (June 3rd, 2012) online parts ordering web site,
www.ECSTUNING.com
I don't sell any of these relays, but, if you are looking to fix door lock or window problems caused by the GM5 module I can help. I stock all the relays used inside the GM3, GM4 and GM5 modules also known as ZKE III, ZKE IV and ZKE V. Contact me at scott@bmwgm5.com.
